Surface

Surface Roughness Review









Surface roughness also known as surface profile Ra is a measurement of surface finish it is topography at a scale that might be considered "texture" on the surface. Surface roughness is a quantitative calculation of the relative roughness of a linear profile or area, expressed as a single numeric parameter (Ra).

The ability of a manufacturing operation to produce a specific surface roughness depends on many factors. For example, in end mill cutting, the final surface depends on the rotational speed of the end mill cutter, the velocity of the traverse, the rate of feed, the amount and type of lubrication at the point of cutting, and the mechanical properties of the piece being machined. A small change in any of the above factors can have a significant effect on the surface produced.

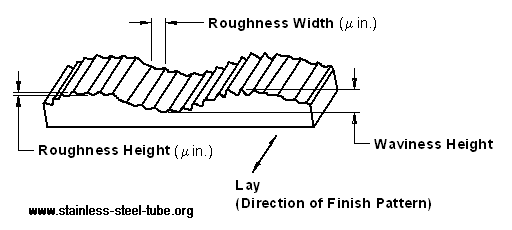

SURFACE ROUGHNESS

Surface Roughness Average Obtainable By Common Production Methods

Process

Roughness Height Rating Microinches

 2000    1000    500     250    125    63    32    16     8     4    2    1    0.5

Flame Cutting

 ---------XXXX----------

Sawing

------------XXXXXXXXXX---------

Drilling

             ---------XXXXXXXXXXXXXX------------

EDM

                         ----------XXXXXXX--------

Milling

               -----------------XXXXXXXXXXXXX-----------

Broaching

                                     -------XXXXXXXX--------

Reaming

                                     -------XXXXXXXX--------

Laser

                                  XXXXXXXXXXXXXX----------

Burnishing

                                                       ---------XXXXXXX-------

Grinding

                                  --------------XXXXXXXXXXXXXXXXX--------

Honing

                                                  -------XXXXXXXXXXXXX--------

Polishing

                                                           -------XXXXXXXX-------------------

Extruding

                          -------------XXXXXXX------

Investment Casting

                               ------XXXX------------------

Perm Mold Cast

                               ------XXXX------------------

Die Casting

                                      ------XXXXXX------


Ra = Roughness, average in micro-meters & micro-inches

China's old standard (finish) China New standard (roughness) Ra American Standard(microns), Ra American Standard (Micro-inch), Ra
▽ 4 6.3 8.00 320
6.30 250
▽ 5 3.2 5.00 200
4.00 160
3.20 125
▽ 6 1.6 2.50 100
2.00 80
1.60 63
▽ 7 0.8 1.25 50
1.00 40
0.80 32
▽ 8 0.4 0.63 25
0.50 20
0.40 16


China Old Grade China New
Ra
China New
Rz
USA micron
Ra
USA microinch
Ra
▽ 1 50 200
▽ 2 25 100
▽ 3 12.5 50
▽ 4 6.3 25 8.00 320
6.30 250
▽ 5 3.2 12.5 5.00 200
4.00 160
3.20 125
▽ 6 1.6 6.3 2.50 100
2.00 80
1.60 63
▽ 7 0.8 6.3 1.25 50
1.00 40
0.80 32
▽ 8 0.4 3.2 0.63 25
0.50 20
0.40 16
▽ 9 0.2 1.6 0.20 12.5
10
8
▽ 10 0.1 0.8 0.10

RMS (microinch) RMS
(µm)
Ra (microinch) Ra
(µm)
Grit Size
80 58
47
34
17
14
2.03 1.47
1.2
0.6
0.43
0.36
71 52
42
30
15
12
1.32-1.90
0.46-0.64
0.3-0.4
0.18-0.38
≤0.15
≤0.08
80 120
150
180
240
320
400

Machining surface finish chart: Ra vs RMS

USA Ra(µm) USA Ra (Micro inch) USA RMS (Micro inch) Machining Finish Method
50.0 2000 2200 The most coarse machining or good rough casting surfaces
25.0 1000 1100 Machining marks very obvious. Rough turning, boring, planning, drilling
12.5 500 550 Machining marks obvious. Normal turning, boring, planning, drilling, grinding
8.00 320 352 Machining marks visible. Normal turning, boring, planning, drilling , grinding
6.30 250 275 Machining marks visible. Normal turning, boring, planning, drilling , grinding
5.00 200 220 Machining marks not obvious. But still visible. Normal turning, boring, planning, drilling, grinding.
4.00 160 176 Machining marks not obvious. But still visible. Normal turning, boring, planning, drilling, grinding.
3.20 125 137.5 Machining marks not obvious. But still visible. Normal turning, boring, planning, drilling, grinding.
2.50 100 110 Machining marks blur, but direction obvious. Number controlled turning, boring, planning, drilling, grinding.
2.00 80 88 Machining marks blur, but direction obvious. Number controlled turning, boring, planning, drilling, grinding.
1.60 63 69.3 Machining marks blur, but direction obvious. Number controlled turning, boring, planning, drilling, grinding.
1.25 50 55 Machining marks direction blur, but still visible. Number controlled turning, boring, planing, drilling, grinding.
1.00 40 44 Machining marks direction blur, but still visible. Number controlled turning, boring, planing, drilling, grinding.
0.80 32 35.2 Machining marks direction blur, but still visible. Number controlled turning, boring, planing, drilling, grinding.
0.63 25 27.5 Machining marks direction blur. Reaming, grinding, boring, rolling.
0.50 20 22 Machining marks direction blur. Reaming, grinding, boring, rolling.
0.40 16 17.6 Machining marks direction blur. Reaming, grinding, boring, rolling.
0.20 12.5 13.75 Machining marks direction invisible. Grinding, super machining
0.20 10 11 Machining marks direction invisible. Grinding, super machining
0.20 8 8.8 Machining marks direction invisible. Grinding, super machining
0.10 4 4.4 Surface dark gloss. Surper machining

Ra is the arithmetic average of surface heights measured across a surface. Simply average the height across the microscopic peaks and valleys.

Ra and RMS are both representations of surface roughness, but each is calculated differently.

Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys.

RMS is calculated as the Root Mean Square of a surfaces measured microscopic peaks and valleys. Each value uses the same individual height measurements of the surfaces peaks and valleys, but uses the measurements in a different formula.
