ASTM A269 TP316 TP316L TP304 TP304L Stainless Steel Tubing



stainless steel tube

Guanyu Tube is specialized manufacturer of ASTM A269 TP304, ASTM A269 TP304L, ASTM A269 TP316, ASTM A269 TP316L, ASTM A269 Tubing in China. Delivery condition in Bright Annealing or Annealing Pickling and Outside surface Polishing.

ASTM A269 Tubing mainly include ASTM A269 TP316 Stainless Steel Instrumentation Tubing, ASTM A269 TP316L Stainless Steel Instrument Tubing, Stainless Steel Hydraulic Tubing. ASTM A269 is issued under the fixed designation ASTM A269, the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript epsilon indicates an editorial change since the last revision or reapproval.

This specification covers grades of nominal-wall thickness, stainless steel tubing for general corrosion-resisting and low-or high-temperature service, as designated in Table 1.

The tubing sizes and thickness usually furnished to this specification are 1⁄4 in. (6.4 mm) in inside diameter and larger and 0.020 in. (0.51 mm) in nominal wall-thickness and heavier.

Mechanical properties requirements do not apply to tubing smaller than 1⁄8 in. (3.2 mm) in inside diameter or 0.015 in. (0.38 mm) in thickness. Additional testing requirements may apply for use in ASME B31.3 applications.

ASTM A 262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steel A 370 Test Methods and Definitions for Mechanical Testing of Steel Products A 480/A 480M Specification for General Requirements.

ASTM A269 Tubing

ASTM A269 is under the jurisdiction of ASTM Committee on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee on Stainless and Alloy Steel Tubular Products. Last previous edition approved in 2015 as ASTM A269 – 2015a.

For referenced ASTM standards
Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
ASTM A632 Specification for Seamless and Welded Austenitic Stainless Steel Tubing (Small-Diameter) for General Service
ASTM A1016/A 1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes
ASTM E527 Practice for Numbering Metals and Alloys (UNS)

2.2 ASME Piping Code:
ASME B31.3 Process Piping

Nominal Pipe Size (NPS): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2 inch
Outside Diameter: 10,3 – 73 mm (0,405 – 2,875 inch)
Wall Thickness: 1,24 – 7,01 (0,049 – 0,276 inch)

Notes:

  1. Steel Grades – TP 304, TP 304L, ASTM A269 TP 316ASTM A269 TP 316L, TP 321
  2. Technical requirements acc. to ASTM A450.
  3. Size of pipes in accordance with ANSI/ASME B36.19M.
  4. The quality of pipes is ensured by manufacturing process and non-destructive test.
  5. Hardness of metal not less than 100 HB.
  6. Length tolerance of measured pipes not greater than +10 mm.
  7. Monitoring of continuity of metal by pneumotest with pressure of 6 bar is available.

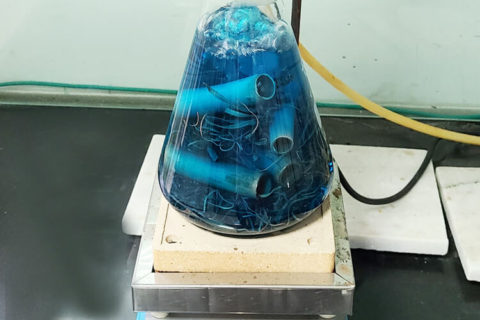

  8. Intergranular corrosion test in accordance with ASTM A262, Practice E is available.

ASTM A269 Tubing Standard Specification

ASTM A269 Standard Seamless Tube SpecificationASTM A249, A269, A270, A554, A688, A268, A778, DIN 17456, DIN 17455, 17457, DIN 17458 [Class 1] & Its equivalent ASME, DIN & EN Standard.
ASTM A269 Electropolish Tube Grades304, 304L, 304H, 304LN, 316LN, 309S, 310S, 316, 316L, 316H, 316Ti, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC.
A269 Instrumentation Tube TypeSEAMLESS / WELDED / COLD DRAW / ERW / EFW / HOT FINISH / COLD FINISH
ASTM A269 Cold Rolled Coiled Tubing Outer Diameter SizeSEAMLESS – 6mm OD TO 114.3mm OD
WELDED / ERW- 10mm TO 114.3mm OD
A269 Heat exchager Tube Wall Thickness0.8mm TO 4mm WALL THICKNESS
ASTM A269 Stainless Steel Polish Tube LengthMaximum 25000mm, Single Random Length, Double Random Length And Customize Size.
Welded ASTM A269 Stainless Tube EndsPlain Ends, Beveled Ends
ASTM A269 Steel Decorative Tube CoatingMechanical Polish, Electropolish, Satin Finish, Passivated
ASTM A269 SS EFW Tube Other TestingProduct Analysis, Radiographic Examination, Transverse Tension, Flattening, Etching, Stabilizing Heat Treatment, Intergranular Corrosion, Grain Size, NACE 0175, Dual Grade, Weld Decay, Magnetic Particle Detection, PWHT (POST WELD HEAT TREATMENT), Flare, Bend, Hardness, Tensile Test etc
A269 Stainless Steel Exhaust Tube DimensionAll Tube are Manufactured and Tested / Inspected to the Relevant standards including ASTM and ASME
A269 Stainless Capillary Tube Value Added ServicesDraw / Expansion / Heat Treatment / Annealed / Machining / Sand Blasting / Shot Blasting / Bright Annealed
A269 ERW Tube PackagingLoose / Bundle / Plastic Cloth Wraps / Wooden Pallet / Wooden Box / Plastic End Caps / Beveled Protector
A269 SS Hot Rolled Tube Material Test CertificateManufacturer Test Certification As Per EN 10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like TUV, DNV, SGS, LLOYDS, ABS ETC

ASTM A269 Tubing Price List

  • ASTM A269 TP304 seamless tube
    USD 3.5-4.9 / kgs
  • ASTM A269 TP304 seamless tubing
    USD 3540-4900 / Metric Ton

ASTM A269 TP316L Tubing Weight Chart

OD inchesWall Thickness
Average Wall Thickness
inches
D/t RatioID inchesTube Cross Sectional Area (in2)Internal Area (in2)
0.2500.02012.500.2100.01450.0346
0.2500.0288.930.1940.01950.0296
0.2500.0357.140.1800.02360.0254
0.2500.0495.100.1520.03090.0181
0.2500.0653.850.1200.03780.0113
0.3750.02018.750.3350.02230.0881
0.3750.02813.390.3190.03050.0799
0.3750.03510.710.3050.03740.0731
0.3750.0497.650.2770.05020.0603
0.3750.0655.770.2450.06330.0471
0.5000.02025.000.4600.03020.1662
0.5000.02817.860.4440.04150.1548
0.5000.03514.290.4300.05110.1452
0.5000.04910.200.4020.06940.1269
0.5000.0657.690.3700.08880.1075
0.5000.0836.020.3340.10870.0876
0.6250.02031.250.5850.03800.2688
0.6250.02822.320.5690.05250.2543
0.6250.03517.860.5550.06490.2419
0.6250.04912.760.5270.08870.2181
0.6250.0659.620.4950.11440.1924
0.6250.0837.530.4590.14130.1655
0.6250.0956.580.4350.15820.1486
0.6250.1095.730.4070.17670.1301
0.7500.02826.790.6940.06350.3783
0.7500.03521.430.6800.07860.3632
0.7500.04915.310.6520.10790.3339
0.7500.06511.540.6200.13990.3019
0.7500.0839.040.5840.17390.2679
0.7500.0957.890.5600.19550.2463
0.7500.1096.880.5320.21950.2223
0.7500.1206.250.5100.23750.2043
0.8750.02043.750.8350.05370.5476
0.8750.02831.250.8190.07450.5268
0.8750.03525.000.8050.09240.5090
0.8750.04917.860.7770.12720.4742
0.8750.06513.460.7450.16540.4359
0.8750.08310.540.7090.20650.3948
0.8750.0959.210.6850.23280.3685
0.8750.1098.030.6570.26230.3390
0.8750.1207.290.6350.28460.316L7
1.0000.02835.710.9440.08550.6999
1.0000.03528.570.9300.10610.6793
1.0000.04920.410.9020.14640.6390
1.0000.06515.380.8700.19090.5945
1.0000.08312.050.8340.23910.5463
1.0000.09510.530.8100.27010.5153
1.0000.1099.170.7820.30510.4803
1.0000.1208.330.7600.33180.4536
1.0000.1347.460.7320.36460.4208
1.2500.03535.711.1800.13361.0936
1.2500.04925.511.1520.18491.0423
1.2500.06519.231.1200.24200.9852
1.2500.08315.061.0840.316L30.9229
1.2500.09513.161.0600.34470.8825
1.2500.10911.471.0320.39070.8365
1.2500.12010.421.0100.42600.8012
1.2500.1349.330.9820.46980.7574
1.5000.03542.861.4300.16111.6061
1.5000.04930.611.4020.22341.5438
1.5000.06523.081.3700.29301.4741
1.5000.08318.071.3340.36951.3977
1.5000.09515.791.3100.41931.3478
1.5000.10913.761.2820.47631.2908
1.5000.12012.501.2600.52021.2469
1.5000.13411.191.2320.57501.1921
1.5000.14810.141.2040.62861.1385
1.7500.03550.001.6800.18862.2167
1.7500.04940.821.9020.30032.8413
1.7500.06526.921.6200.34412.0612
1.7500.08321.081.5840.43471.9706
1.7500.09518.421.5600.49391.9113
1.7500.10916.061.5320.56191.8433
1.7500.12014.581.5100.61451.7908
1.7500.13413.061.4820.68031.7250
1.7500.14811.821.4540.74491.6604
1.7500.16510.611.4200.82161.5837
2.0000.03557.141.9300.21612.9255
2.0000.04940.821.9020.30032.8413
2.0000.06530.771.8700.39512.7465
2.0000.08324.101.8340.49992.6417
2.0000.09521.051.8100.56852.5730
2.0000.10918.351.7820.64752.4941
2.0000.12016.671.7600.70872.4328
2.0000.13414.931.7320.78552.3561
2.0000.14813.511.7040.86112.2805
2.0000.16512.121.6700.95122.1904

ASTM A269 TP316 Tubing Heat Treatment Requirements

  • All material shall be furnished in the heat-treated condition. Except as provided in 6.2, the heat-treatment procedure shall, except for S31254 and S32654, S24565, N08367, N08904 and N08926, consist of heating the material to a minimum temperature of 1900°F (1040°C) and quenching in water or rapidly cooling by other means. Alternatively, for seamless tubes, immediately following hot forming while the temperature of the tubes is not less than the specified minimum solution treatment temperature, tubes may be individually quenched in water or rapidly cooled by other means.
  • Controlled structural or special service characteristics shall be specified as a guide for the most suitable heat treatment. If the final heat treatment is at a temperature under 1900°F and is so specified on the order, each tubes shall be stenciled with the final heat treatment temperature in degrees Fahrenheit after the suffix ”HT”.
  • S31254 and S32654 shall be heat-treated to a minimum temperature of 2100°F (1150°C) followed by quenching in water or rapidly cooling by other means.
  • S24565 SHALL BE HEAT-TREATED IN THE RANGE 2050°F (1120°C) to  2140°F (1170°C) followed by quenching in water or rapidly cooling by other means.
  • N08904 shall be heat treated to a minimum temperature of 2000°F (1100°C) followed by quenching in water or rapidly cooling by other means.
  • A solution annealing temperature above 1950°F (1065°C) may impair the resistance to intergranular corrosion after subsequent exposure to sensitizing conditions in TP321, TP347, and TP348. When specified by the purchaser, a lower temperature stabilization or re-solution anneal shall be used subsequent to the initial high temperature solution anneal.
  • N08926 shall be heat-treated to a minimum temperature of 2010°F (1100°C) followed by quenching in water or rapidly cooling by other means.
  • UNS N08367 should be solution annealed from 2025°F (1107°C)minimum followed by rapid quenching.
  • Solution annealing of S35045 shall consist of heating the material to a temperature of 2000°F (1093°C) minimum for an appropriate time, followed by cooling in still air or at a faster rate.

ASTM A269 Mechanical Properties

GradeUNS
Designation
Tensile Strength, Min. Ksi [MPa]Yield Strength, Min. Ksi [MPa]Others
TP304S3040075 [515]30 [205]
TP304LS3040370 [485]25 [170]
ASTM A269 TP316S3160075 [515]30 [205]
ASTM A269 TP316LS3160370 [485]25 [170]
TP317S3170075 [515]30 [205]
TP321S3210075 [515]30 [205]welded & seamless
TP347S3470075 [515]30 [205]
TP347HS3470975 [515]30 [205]

Flaring Test (Seamless Tubes)

One test shall be made on specimens from one end of one tube from each lot of finished tubes.

Flange Test (Welded Tubes)

One test shall be made on specimens from one end of one tube from each lot of finished tubes.

Hardness Test

Brinell or Rockwell hardness determination shall be made on specimens from two tubes from each lot. The term lot applies to all tubes prior to cutting, of the same nominal diameter and wall thickness that are produced from the same heat of steel. When final heat treatment is in a batch-type furnace, a lot shall include only those tubes of the same size and the same heat which are heat treated in the same furnace charge. When the final heat treatment is in a continuous furnace or when the heat-treated condition is obtained directly by quenching after hot forming, a lot shall include all tubes of the same size and heat, heat treated in the same furnace at the same temperature, time at heat, and furnace speed, or all tubes of the same size and heat, hot formed and quenched in the same production run.

Reverse flattening Test

For welded tubes, one reverse flattening test shall be made on a specimen from each 1500ft(460m) of finished tubing. Coiled tubing greater than 1500ft(450m) in length shall be sampled at both ends, a coil must be continuous without any circumferential butt welds.

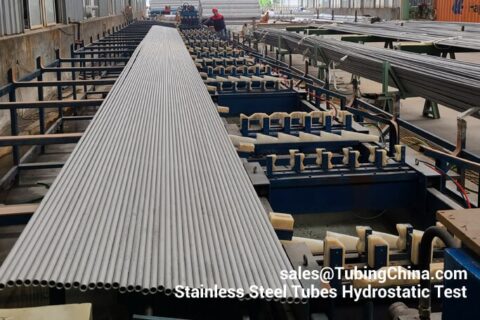

Hydrostatic or Nondestructive Testing

Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test.

Markings

  • Markings will adhere to prescribed specifications in ASTM A1016/A 1016M and shall include whether the tubing is seamless or welded and the final heat-treatment temperature in digress Fahrenheit after the suffix” if the final heat treatment temperature is under 1900°F (1040°C).
  • When the nondestructive electric test is performed, each length of tubing shall be marked with the letters “NDE” and the certification, when required, shall also indicate this test.

Note:

  • Mill test certificates will be issued according to EN10204 3.1
  • All tubes shall be supplied as per applicable ASTM A269 Specification.

ASTM A269 Stainless Steel Tubes Application

These ASTM A269 TP316L stainless steel tube grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • ASTM A269 stainless steel tube for Chemical and petrochemical
  • ASTM A269 Welded Stainless Steel tube for Pulp and Paper
  • ASTM A269 Stainless Steel tubing for Mechanical Processing
  • ASTM A269 Stainless steel welded tube used for Power generation
  • ASTM A269 Stainless steel tube for Renewable energy
  • ASTM A269 Welded Stainless Steel tube used for Pharmaceutical

Download ASTM A269/A269M in PDF

PDF

ASTM A269/A269M Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
