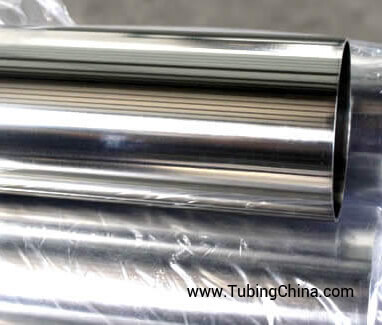

Polishing Stainless Steel Pipe
Consender Tubes
Welded Steel Pipe


ASTM A789 S32760 / ASME SA 789 S32760 Super Duplex Steel Pipe, EN 10216 - 5 1.4501 Super Duplex has enhanced pitting and crevice corrosion resistance compared with the ordinary austenitic or duplex types. This is due to the further additions of chromium, molybdenum, and nitrogen to these grades. UNS S32760, F55, 1.4501 combines high strength and good ductility with outstanding corrosion resistance. With UNS S32760, F55, 1.4501 having these attribute it is used in a wide range of marine, oil and gas environments. UNS S32760, F55, 1.4501 is the most common super duplex grade.

Super Duplex Alloy UNS S32760 (1.4501) has excellent corrosion resistance to a wide variety of media, with outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with Critical Pitting Temperature exceeding 50°C.UNS S32760, F55, 1.4501 Super Duplex has enhanced pitting and crevice corrosion resistance compared with the ordinary austenitic or duplex types. This is due to the further additions of chromium, molybdenum, and nitrogen to these grades. UNS S32760, 1.4501 combines high strength and good ductility with outstanding corrosion resistance.

Providing higher strength than both austenitic and 22% Cr Duples Stainless Steel UNS S32760 (F55) is suited to a variety of applications in industries such as Chemical Processing, Oil & Gas, and Marine environments. Super Duplex Alloy UNS S32760 (F55 / 1.4501) has excellent corrosion resistance to a wide variety of media, with outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with Critical Pitting Temperature exceeding 50°C.

ASTM A789 S32760 ASME SA 789 S32760 Super Duplex Steel Pipe Chemical Composition
 C. Cr. Cu. Mn. Mo. N. Ni. P. S. Si. W.
0.030% 24.00- 0.50- 1.00% 3.00- 0.20- 6.00- 0.035% 0.010% 1.00% 0.50-
max 26.00% 1.00% max 4.00% 0.30% 8.00% max max max 1.00%

S32760 Super Duplex Steel Tubing Minimum Mechanical Properties at Room Temperature
(EN10088-3 1.4501 UNS S32760 OD19.05mm,WT1.65mm - Annealing and Pickeling)

Tensile (UTS) 678-692N/mm²
 0.2% Proof Stress   530 N/mm² Min
 Elongation    29-30%
Hardness(Rockwell)   29/30
 Impact   100J

Super Duplex Stainless Steel Specifications  EN10088-3 UNS S32760 F55 1.4501 Grade X2CrNiMoCuWN25-7-4  ASTM A182 F55 NACE MR01-75 ISI 15156ASTM A276 A314 SAE J405 Norsok MDS D51 D55 D57 D58

Super Duplex stainless steel – with a microstructure of 50:50 austenite and ferrite, the steel has improved strength over ferritic and austenitic steel grades. With a higher than average Molybdenum and Chromium content, the material has greater heat and corrosion resistant qualities.

With reduced production costs when compared with equivalent austenitic and ferritic grades and with greater yield and tensile strength, SuperDuplex is a cost effective solution for the consumer. It is conceivable that material thicknesses for a project may be reduced if SuperDuplex is used, thus reducing cost without compromising quality.

Benefits of UNS S32760 Super Duplex Stainless Steel
  • Increased tensile & yield strength
  • Good ductility and toughness
  • SCC resistance
  • Corrosion resistance is better than Duplex
  • Cost effective


  • ASME SA789 ASTM A789 S32760 Stainless Steel Pipe

    S32760 Super Duplex Steel Pipe Applications
    UNS S32760 is used in the oil and gas industry, on offshore platforms, in heat exchanger, chemical processing equipment, pressure vessels and boilers.

    Oil and gas industry equipment,
    Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems,
    Chemical process industries, heat exchanger, vessels, and piping,
    Desalination plants, high pressure RO-plants and seawater piping,
    Mechanical and structural components, high strength, corrosion-resistant parts,
    Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping.

    S32760 Super Duplex Steel Pipe Corrosion Resistance

    The high chromium and molybdenum content of Super Duplex makes it extremely resistant to uniform corrosion by organic acids like formic and acetic acid. Super Duplex also provides excellent resistance to inorganic acids, especially those containing chlorides.

    ASTM A789 / ASME SA789 covers grades of average wall thickness, or, if specified on the order, minimum wall thickness, of stainless steel tubing for services requiring general corrosion resistance, with particular emphasis on resistance to stress corrosion cracking. These steels are suscep- tible to embrittlement if used for prolonged periods at elevated temperatures.

    The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Within the text, the SI units are shown in brackets. The inch-pound units shall apply unless the M designation of this specification is specified in the order.

    Referenced Documents

    ASTM Standards:
    A480/A480M Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
    A1016/A1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes
    E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

    SAE Standard:
    SAE J 1086 Practice for Numbering Metals and Alloys (UNS)

    Ordering Information

    Orders for product under this specification should in- clude the following, as required, to describe the desired material adequately:

    Quantity (feet, metres, or number of lengths),

    Name of product (seamless or welded tubes),

    Grade

    Size (outside diameter and average wall thickness, unless minimum wall thickness is specified),

    Length (specific or random),

    Optional requirements (for product analysis, see Section for hydrostatic or nondestructive electric test, see Section 10

    Test report required (see the Inspection section of Specification A1016/A1016M

    Specification designation, and

    Special requirements.

    General Requirements

    Product furnished under this specification shall conform to the applicable requirements of specification A1016/ A1016M, unless otherwise provided herein.

    Manufacture

    The tubes shall be made by the seamless or welded process with no filler metal added.

    Heat Treatment

    All tubes shall be furnished in the heat-treated condition in accordance with the procedures shown in Table 2. For seamless tubes, as an alternate to final heat treatment in a continuous furnace or batch-type furnace, immediately follow- ing hot forming while the temperature of the tubes is not less than the specified minimum solution treatment temperature, tubes may be individually quenched in water or rapidly cooled by other means.

    Table.1 ASTM A789 Duplex Steel Chemical Composition

    The steel shall conform to the chemical requirements prescribed in Table 1.

    UNS
    DesignationCMnPSSiNiCrMoNCuOthers
    S312000.0302.000.0450.0301.005.5–6.524.0–26.01.20–2.000.14–0.20. . .. . .
    S312600.0301.000.0300.0300.755.5–7.524.0–26.02.5–3.50.10–0.300.20
    –0.80
    W 0.10
    –0.50
    S315000.0301.20
    –2.00
    0.0300.0301.40
    –2.00
    4.3–5.218.0–19.02.50–3.000.05–0.1. . .. . .
    S318030.0302.000.0300.0201.004.5–6.521.0–23.02.5–3.50.08–0.20. . .. . .
    S320010.0304.00
    –6.00
    0.0400.0301.001.0–3.019.5–21.50.600.05–0.171.00. . .
    S320030.0302.000.0300.0201.003.0-4.019.5-22.51.50-2.000.14-0.20. . .. . .
    S321010.0404.0-6.00.0400.0301.001.35-1.7021.0-22.00.10-0.800.20-0.250.10
    -0.80
    . . .
    S322020.0302.000.0400.0101.001.00–2.8021.5–24.00.450.18–0.26. . .. . .
    S32205 / Alloy 22050.0302.000.0300.0201.004.5–6.522.0–23.03.0–3.50.14–0.20. . .. . .
    S32304 / Alloy 23040.0302.500.0400.0401.003.0–5.521.5–24.50.05–0.600.05–0.200.05
    –0.60
    . . .
    S325060.0301.000.0400.0150.905.5–7.224.0–26.03.0–3.50.08–0.20. . .W 0.05
    –0.30
    S325200.0301.500.0350.0200.805.5–8.023.0–25.03.–5.0.20–0.350.50
    –3.00
    . . .
    S325500.041.500.0400.0301.004.5–6.524.0–27.02.9–3.90.10–0.251.50
    –2.50
    . . .
    S327070.0301.500.0350.0100.505.5–9.526.0–29.04.0–5.00.30–0.501.0 maxCo 0.5
    –2.0
    S32750 / 2507 Pipe0.0301.200.0350.0200.806.0–8.024.0–26.03.0–5.00.24–0.320.50. . .
    S327600.0301.000.0300.0101.006.0–8.024.0–26.03.0–4.00.20–0.300.50
    –1.00
    W 0.50
    –1.00
    S328080.0301.100.0300.0100.507.0–8.227.0–27.90.80–1.200.30–0.40. . .W 2.10
    –2.50
    S329000.081.000.0400.0300.752.5–5.023.0–28.01.00–2.00. . .. . .. . .
    S329060.0300.80
    –1.50
    0.0300.0300.805.8–7.528.0 –30.01.50–2.600.30–0.400.80. . .
    S329500.0302.000.0350.0100.603.5–5.226.0–29.01.00–2.500.15–0.35. . .. . .
    S332070.0301.500.0350.0100.806.0–9.029.0–33.03.0–5.00.40–0.601.0. . .
    S392740.0301.000.0300.0200.806.0–8.024.0–26.02.5–3.50.24–0.320.20
    –0.80
    W 1.50
    –2.50
    S392770.0250.800.0250.0020.806.5–8.024.0–26.03.00–4.000.23–0.331.20
    –2.00
    W 0.80
    –1.21
    S820110.0302.0
    –3.0
    0.0400.0201.001.00–2.0020.5–23.50.10–1.000.15–0.270.50. . .
    S824410.0302.50
    –4.00
    0.0350.0050.703.0–4.523.0–25.01.00–2.000.20–0.300.10
    –0.80
    A Maximum, unless a range or minimum is indicated. Where ellipses (...) appear in this table, there is no minimum and analysis for the element need not be determined or reported.
    B Designation established in accordance with Practice E527 and SAE J1086.
    C % Cr + 3.3 × % Mo + 16 × % N $ 41.
    D % Cr + 3.3 × % Mo + 16 × % N $ 40.

    Product Analysis

    1. An analysis of either one billet or one length of flat-rolled stock or one tube shall be made from each heat. The chemical composition thus determined shall conform to the requirements specified.

    2. A product analysis tolerance (see the annex table on Chemical Requirements (Product Analysis Tolerances) in Specification A480/A480M) shall apply. The product analysis tolerance is not applicable to the carbon content for material with a specified maximum carbon of 0.04 % or less.

    3. If the original test for product analysis fails, retests of two additional billets, lengths of flat-rolled stock, or tubes shall be made. Both retests for the elements in question shall meet the requirements of this specification; otherwise, all remaining material in the heat shall be rejected or, at the option of the producer, each billet or tube may be individually tested for acceptance. Billets, lengths of flat-rolled stock, or tubes that do not meet the requirements of this specification shall be re-jected.

    NOTE 1—For flange and flaring requirements, the term lot applies to all tubes prior to cutting of the same nominal size and wall thickness that are produced from the same heat of steel. When final heat treatment is in a batch-type furnace, a lot shall include only those tubes of the same size and from the same heat that are heat treated in the same furnace charge. When the final heat treatment is in a continuous furnace, or when heat treated condition is obtained directly by quenching after hot forming, the number of tubes of the same size and from the same heat in a lot shall be determined from the size of the tubes as prescribed in Table 3.

    NOTE 2—For tension and hardness test requirements, the term lot applies to all tubes prior to cutting, of the same nominal diameter and wall thickness that are produced from the same heat of steel. When final heat treatment is in a batch-type furnace, a lot shall include only those tubes of the same size and the same heat that are heat treated in the same furnace charge. When the final heat treatment is in a continuous furnace, or when heat treated condition is obtained directly by quenching after hot forming, a lot shall include all tubes of the same size and heat, heat treated in the same furnace at the same temperature, time at heat, and furnace speed, or all tubes of the same size and heat, hot formed and quenched in the same production run.

    Mechanical Tests Required

    1. Tension Tests—One tension test shall be made on a specimen for lots of not more than 50 tubes. Tension tests shall be made on specimens from two tubes for lots of more than 50 tubes (see Note 2).
    2. Flaring Test (for Seamless Tubes)—One test shall be made on specimens from one end of one tube from each lot (see Note 1) of finished tubes. The minimum expansion of the inside diameter shall be 10 %.
    3. Flange Test (for Welded Tubes)—One test shall be made on specimens from one end of one tube from each lot (see Note1) of finished tubes.
    4. Hardness Test—Brinell or Rockwell hardness tests shall be made on specimens from two tubes from each lot (see Note 2).
    5. When more than one heat is involved, the tension, flaring, flanging, and hardness test requirements shall apply to each heat.
    6. Reverse Flattening Test—For welded tubes, one reverse flattening test shall be made on a specimen from each 1500 ft [450 m] of finished tubing.

    Hydrostatic or Nondestructive Electric Test

    1 Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.

    2. The hydrostatic test shall be in accordance with Speci- fication A1016/A1016M, except that in the calculation of the hydrostatic test pressure 64000(441.2) shall be substituted for 32000(220.6).

    Table.2 Heat Treatment

    UNS Designation Temperature Quench
    S31803 1870-2010 °F [1020-1100°C] Rapid cooling in air or water
    S32205 1870-2010 °F [1020-1100°C] Rapid cooling in air or water
    S31500 1800-1900 °F [980-1040°C] Rapid cooling in air or water
    S32550 1900 °F [1040°C] min. Rapid cooling in air or water
    S31200 1920-2010 °F [1050-1100°C] Rapid cooling in water
    S31260 1870-2010 °F [1020-1100°C] Rapid cooling in water
    S32001 1800-1950 °F [982-1066°C] Rapid cooling in air or water
    S32003 1850-2050 °F [1010-1120°C] Rapid cooling in air or water
    S32101 1870 °F min Quenched in water or Rapidly cooling in other means
    S32202 1870-1975 °F [1020-1080°C] Rapid cooling in air or water
    S32506 1870-2050 °F [1020-1120°C] Rapid cooling in air or water
    S32304 1700-1920 °F [925-1050°C] Rapid cooling in air or water
    S32750 1880-2060 °F [1025-1125°C] Rapid cooling in air or water
    S32760 2010-2085 °F [1100-1140°C] Rapid cooling in air or water
    S32950 1820-1880 °F [990-1025°C] Rapid cooling in water
    S32520 1975-2050 °F [1080-1120°C] Rapid cooling in air or water


    Tensile Strength and Hardness Requirements

    11.1 The material shall conform to the tensile and hardness properties prescribed in Table 4.
    Grade Tensile strength, min., ksi [MPa] Yield strength, min., ksi [MPa] Elongation in 2 in., or 50mm, min, % Hardness, Max Brinell
    S31803 90 [620] 65 [450] 25 290
    S32205 95 [655] 70 [485] 25 290
    S31500 92 [630] 64 [440] 30 290
    S32550 110 [760] 80 [550] 15 297
    S31200 100 [690] 65 [450] 25 280
    S31260 100 [690] 65 [450] 25 290
    S32001 90 [620] 65 [450] 25 290
    S32304 100 [690] 65 [450] 25 290
    S32750 116 [800] 80 [550] 15 310
    S32760 109 [750] 80 [550] 25 300
    S32950 100 [690] 70 [480] 20 290
    S32520 112 [770] 80 [550] 25 310

    For tubing smaller than 1⁄2 in. [12.7 mm] in outside diameter, the elongation values given for strip specimens in Table 4 shall apply. Mechanical property requirements do not apply to tubing smaller than 1⁄8 in. [3.2 mm] in outside diameter or with walls thinner than 0.015 in. [0.4  mm].
    Prior to A789/A789M–04, the values for S32003 were 90 ksi tensile strength and 65 ksi yield strength.

    Permissible Variations in Dimensions

    1 Variations in outside diameter, wall thickness, and length from those specified shall not exceed the amounts prescribed in Table 5.
    2 The permissible variations in outside diameter given in Table 5 are not sufficient to provide for ovality in thin-walled tubes, as defined in the table. In such tubes, the maximum and minimum diameters at any cross section shall deviate from the nominal diameter by no more than twice the permissible variation in outside diameter given in Table 5; however, the mean diameter at that cross section must still be within the given permissible variation.

    Surface Condition

    All tubes shall be free of excessive mill scale, suitable for inspection. A slight amount of oxidation will not be considered as scale. Any special finish requirements shall be subject to agreement between the manufacturer and the purchaser.

    Product Marking

    In addition to the marking prescribed in Specification A1016/A1016M, the marking shall indicate whether the tubing is seamless or welded and the wall designation (average wall or minimum wall).

    Stainless Steel Tubing
    Visual Testing
    Stainless Steel Tube PMI Testing
    100% PMI Testing
    Stainless Steel Tube Hydraustatic Testing
    Hydraustatic Testing

    Stainless Steel Tube in Plywood Cases
    Stainless Steel Tube Package
    Plywood Cases Package

    Stainless Steel Tube in Plywood Cases With Iron Frame
    Iron Frame Plywood Case Package
    Standard
    Item
    ASTM A789 ASTM A790 EN 10216-5
    Grade S31803 S32205 S32750 S31803 S32205 S32750 1.4301 1.4307 1.4948  1.4315
    1.4401 1.4404 1.4571  1.4541
    1.4941 1.4845 1.4449  1.4438
    1.4550 1.4912 1.4462  1.4410
    Yield Strength
    (Mpa)
    ≥450;≥485;≥550 ≥450;≥450;≥550 ---
    Tensile Strength
    (Mpa)
    ≥620;≥655;≥800 ≥620;≥655;≥800 ---
    Elongation(%) ≥25;≥25;≥15 ≥25;≥25;≥15 ---
    Hydrostatic Test The Hydrostatic Test shall be in accordance with ASTM A1016.

    Could be replaced by ECT.
    The Hydrostatic Test shall be in accordance with ASTM A999.

    Could be replaced by ECT.
    The hydrostatic test shall be carried out at a test pressure of 7MPa or
    at a test pressure calculated using the following formula
    P=2St/D S=70%Rp0.2
    Intergranular Corrosion Test Usually use Pitting Corrosion Test. Usually use Pitting Corrosion Test. EN ISO 3651-2 (Optional)
    Eddy Current Test Could be replaced by HT. Could be replaced by HT. EN 10246-3
    O.D. Tolerance
    (mm)
    O.D. O.D.Tolerance O.D. O.D.Tolerance O.D. Tolerance Class
    D<12.7 +/-0.13 10.3≤D≤48.3 +0.40/-0.80 D3 +/-0.75% or
    +/-0.3mm
    12.7≤D<38.1 +/-0.13 48.3<D≤114.3 +0.80/-0.80
    whichever is the greater
    38.1≤D<88.9 +/-0.25 114.3<D≤219.1 +1.60/-0.80 D4 +/-0.5% or
    +/-0.1mm
    88.9≤D<139.7 +/-0.38 219.1<D≤457.0 +2.40/-0.80
    whichever is the greater
    W.T. Tolerance
    (mm)
    O.D. W.T.Tolerance O.D. W.T.Tolerance W.T. Tolerance Class
    D<12.7 +/-15% 10.3≤D≤73.0 +20.0%/-12.5% T3 +/-10% or
    +/-0.2mm
    12.7≤D<38.1 +/-10%
    88.9≤D≤457.0
    t/D ≤5%
    +22.5%/-12.5% whichever is the greater
    38.1≤D<88.9 +/-10% T4 +/-7.5% or
    +/-0.15mm
    88.9≤D≤457.0
    t/D >5%
    +15.0%/-12.5%
    88.9≤D<139.7 +/-10%
    whichever is the greater

      Stainless Steel Tube/Pipe/Tubing, Nickel Alloy Tubing, Brass Alloy Tubing, Copper Nickel Pipe Material Grades


    Size:1/4" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/8" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1/2" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:5/8" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/4" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:5/16" × 0.035"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1/4" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/8" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1/2" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:5/8" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/4" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1" × 0.049"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1/4" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/8" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1/2" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:5/8" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:3/4" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1" × 0.065"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe
    Size:1" × 0.120"
    ASTM A789 ASME SA 789 S32760 Super Duplex Steel Tubing Pipe


    Related References:
    1. Duplex Stainless Steel Pipe
    2. Duplex Stainless Steel
    3. Super-Duplex Stainless Steel
    4. Principle of Duplex Stainless Steel
    5. How the Austenite Ferrite Balance Achieved
    6. Corrosion Resistance of Duplex Stainless Steel
    7. Stress Corrosion Cracking SCC of Duplex Stainless Steel
    8. Barrier to Using Duplex Stainless Steel
    9. Duplex Stainless Steel Grades Comparison Table
    10. S32101 | S32205/S31803 | S32304 | S32750 | S32760
    11. ASTM A789/A789M
    12. ASTM A 790/A 790M
    13. Duplex Stainless Steel Pipe
    14. Austenitic-Ferritic Stainless Steel Pipe
    15. Super-Duplex Stainless Steels and their characteristics
    16. 2507 S32750 Duplex Steel Pipe
    17. S31803 Stainless Steel Pipe
    18. S32304(1.4362) Duplex Steel
    19. S32205 Stainless Steel Pipe
    20. 1.4462 Stainless Steel Pipe
    21. Use of stainless steel under high temperature condition refer table
    22. ASTM A789 S31803 Duplex Stainless Steel Pipe
    23. ASTM A789 S32205 Duplex Stainless Steel Pipe
    24. Duplex Stainless Steel ePipe Specification

    TubingChina.com All Rights Reserved

    Directory | Standard | Heat | Heat Exchanger | Temperature | Pressure | Corrosion | Hardness | Surface | Properties | Select Stainless Steel | Contact US

    Useful Tools:

    Stainless Steel Weight Calculator
    Metals Weight Calculator
    Nickel Alloy Weight Calculator
    Copper Brass Alloy Weight Calculator
    Copper Brass Alloy Sheet Plate Weight Calculator
    Sheet Plate Weight Calculator
    Hardness Conversion Calculator
    Hardness Conversion Chart
    Rockwell Brinell Vickers Shore Hardness Conversion Chart
    Conversion Calculator
    Length Weight Temperature Volume Pressure Calculater
    Pipe Working Pressure Calculator
    Pressure Conversion Converter
    Round Bar Size Calculator
    Gauge Sizes
    Sheet Metal Gauge
    Pipe Schedule
    Nominal Pipe Size
    ANSI Pipe Chart
    Inch to mm Chart
    Stainless Steel Pipe Sizes
    Stainless Steel Tubing Sizes Chart
    Stainless Steel L H Grade
    Stainless Steel Density
    Conversion of Stainless Steel
    Nickel Alloy Grades Comparison Material Grade Chart Carbon Steel
    Structural Steel Comparison Chart



    Main Products:

    BA Tube | AP Tube
    Condenser Tubes Tubing
    Stainless Steel Reheater Tube Superheater Tubes
    Stainless Steel U bend Tube
    Nickel Alloy U bend Tubes
    Copper Alloy U Bend Tubes
    Heat Exchanger Tube
    Super Duplex Pipe
    Nickel Alloy Tube
    Brass Alloy Tubing
    Copper Nickel Alloys Tubes
    Stainless Steel Hollow Tube
    Stainless Steel Oval Tubing
    Stainless Steel Square Tubing
    Stainless Steel Rectangular Tubing
    Stainless Steel Capillary Tube
    Duplex Stainless Steel Pipe
    Seamless Stainless Steel Tubing
    Corrugated Stainless Steel Tubing
    Stainless Steel Twisted Tube
    Polishing Stainless Steel Tubing
    Stainless Steel Aircraft Tube
    Stainless Steel Hydraulic Tubing
    Stainless Steel Instrumentation Tubing
    Stainless Steel Angle Iron Bar
    Stainless Steel Mechanical Tube
    Bright Annealing Stainless Tube
    Heat resistant Stainless Steel
    Stainless Steel Welded Pipe
    Extruded Serrated Finned Tubes Integral Finned Tubes / Extruded Aluminum Finned Tubes
    Brass Alloys Copper Nickel Alloy Integral Low Finned Tubes
    HFW High Frequency Welded Helical Spiral Serrated Finned Tubes
    Corrosion Resistant Stainless Steel
    Corrosion Resistance Stainless Steel

    Stainless Steel Tubing Pipe

    304 Stainless Steel Pipe
    304L Stainless Steel Pipe
    304H Stainless Steel Pipe
    304/304L Stainless Steel Tubing
    309S Stainless Steel Pipe
    310S Stainless Steel Pipe
    316L Stainless Steel Tubing
    316Ti Stainless Steel Tube
    317L Stainless Steel Pipe
    321 321H Stainless Steel
    347 347H Stainless Steel
    904L N08094 Seamless Tubes
    17-4 PH 630 UNS S17400 Stainless Steel
    253MA S30815 Stainless Steel Tube
    S31254 254 SMO Pipe
    S31803 Stainless Steel
    2205 Duplex Pipe Tubing
    S32101 Stainless Steel
    S32304 Stainless Steel
    2507 Super Duplex Pipe
    S32750 Super Duplex Pipe
    S32760 Super Duplex Steel
    1.4462 Stainless Steel Pipe
    ASTM A213 | ASTM A269
    ASTM A312 | ASTM A511
    ASTM A789 | ASTM A790
    ASTM B161 / ASME SB 161 | ASTM B111
    EN 10216-5
    ASTM A789 ASME SA 789 S31803 S32205 S32101 S32750 S32760 S32304 S31500 S31260 Seamless Tubes
    EN 10216-5 1.4462 1.4362 1.4162 1.4410 1.4501 Seamless Tubes
    Nickel Alloy Tubing:

    UNS N08020 Alloy 20 Tubing
    UNS N02200 Alloy 200 Tube
    UNS N02201 Alloy 201 Pipe
    UNS N04400 Monel 400 Tubing
    N06600 Inconel 600 Tube
    N06601 Inconel 601 Tubing
    N06625 Inconel 625 Tubes
    N08800 Incoloy 800 Tube
    N08810 Incoloy 800H Tube
    N08811 Incoloy 800HT Tubing
    UNS N08825 Incoloy 825 Pipe
    ASTM B622 N10276 C276 Tubing
    ASTM B622 N06022 Hastelloy C-22 Alloy Tubes
    C28000 Brass Seamless Tubes C44300 Brass Seamless Tubes
    C68700 Brass Seamless Tubes
    C70600 Copper Nickel Tubes
    C71500 Copper Nickel Tubes
    DIN 2391 Seamless Precision Steel Tubes
    EN 10305-1 E215 E235 E355 Seamless Precision Steel Tube Tubing Tubes
    DIN 2393 St28 St34.2 St37.2 St44.2 St52.3 Welded Precision Steel Tubes
    EN 10305-2 E195 E235 E355 Welded Cold Drawn Precision Steel Tube
