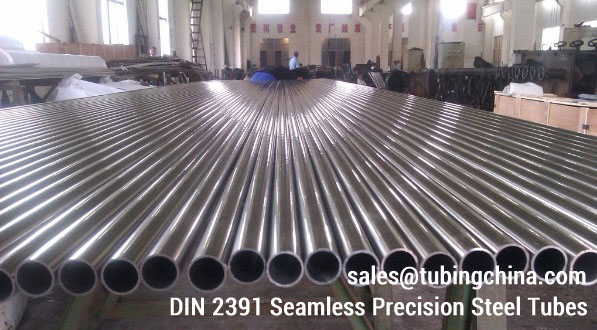

DIN 2391 Pipe Din 2391 St35 St45 St52 Seamless Precision Steel Tubes






DIN 2391 applies to seamless precision steel tubes and in compliance with ISO/DIN 3304, those tube dimensions have been selected from the range of manufacture dimensions which are mainly used as design elements.

If tubes having the tolerances and are produced according to the technical conditions of deivery as specified in this Standard are to e used as pipelines, then the dimensions specified in DIN 2448 may from time to time be used. These tubes must be ordered according to quality grade C.

DIN 2391 Pipe Seamless Precision Steel Tubes Size:
Outside Diameter (Nominal Size ): 4 - 260 mm
Wall Thickness: 0,5 - 25 mm
Delivery condition:BK ,BKW,BKS,GBK,NBK
Application: Industrial and Mechanical, Automotive

Notes:
  1. Steel grades: St 35, St 45, St 52
  2. Length up to 9 m.
  3. Test certificates according to DIN EN 10204.

DIN 2391 Seamless Precision Steel Tubes Sizes
Nominal Size, mm
Wall Thickness, mm
6; 7
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0
8
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5
9
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8
10; 12
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0
14; 15; 16; 18
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5
20; 22
0,5; 0,8; 1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5
25; 26; 28; 30
1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5; 4,0; 4,5; 5,0; 5,5; 6,0
32; 35; 38; 40
1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5; 4,0; 4,5; 5,0; 5,5; 6,0
42; 45; 48; 50
1,0; 1,2; 1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5; 4,0; 4,5; 5,0; 5,5; 6,0
55; 60; 65
1,5; 1,8; 2,0; 2,2; 2,5; 2,8; 3,0; 3,5; 4,0; 4,5; 5,0; 5,5; 6,0
70; 75; 80
3,0; 3,5; 4,0; 4,5; 5,0; 5,5; 6,0

DIN 2391 Seamless Precision Steel Tubes Mechanical Properties (Mpa)
Grade Material
Number
Tensile Strength
MPa or N/mm2
Remaks
(Similar to JIS)
Possibility Temperature
Min Yield Point Tensile Strength
St30Si 1.0211 - 400Min (STKM11)
- 355Min
- 285Min
215 295~420
St30Al 1.0212 - 400Min (STKM11)
- 355Min
- 285Min
215 295~420
St35 1.0308 - 440Min (STC38)
- 370Min
- 315Min
235 340~470
St45 1.0408 - 540Min (STKM13)
- 470Min
- 390Min
255 440~570
St52 1.0580 - 590Min (STKM19)
- 540Min
- 490Min
350 490~630


DIN 2391 Seamless Precision Steel Tubes Chemical composition(%)
Grade Mfg. Process Chemical composition(%)
C Si Mn P S Ni Cr Mo Others a
b
c
d
St30Si S 0.10Max 0.30Max 0.55Max 0.040Max 0.040Max - - - - a
b
c
d
St30A1 S 0.10Max 0.05Max 0.55Max 0.040Max 0.040Max - - - Al deoxydized a
b
c
d
St35 S 0.17Max 0.35Max 0.40Max 0.050Max 0.050Max - - - - a
b
c
d
St45 S 0.21Max 0.35Max 0.40Max 0.050Max 0.050Max - - - - a
b
c
d
St52 S 0.22Max 0.55Max 1.60Max 0.050Max 0.050Max - - - - a
b
c
d

Note: a: Cold-finished/hard b: Cold-finished/soft c: Annealed d: Normalized


Delivery status Abbreviation Description
Cold-finished/hard
(Cold-finished as-drawn)
BK No heat treatment after the last cold-forming process. The tubes therefore have only low deformability.
Cold-finished/soft
(lightly cold-worked)
BKW After the last heat treatment there is a light finishing pass (cold drawing) With proper subsequent processing, the tube can be cold-formed (e.g. bent, expanded) within certain limits.
Annealed GBK After the final cold-forming process the tubes are annealed in a controlled atmosphere or under vacuum.
Normalized NBK The tubes are annealed above the upper transformation point in a controlled atmosphere or under vacuum.

DIN 2391 Seamless Precision Steel Tubes

Welded Steel Tubing and pipe-Corresponding to DIN 2391-1

Wall thickness
s
Nominal dimension 0.5 0.8 1 1.2 1.5 1.8 2 2.2 2.5 2.8 3 4.5 5 5.5 6 7 8 9 10 12 14 16 18 20 22 25
Permissible deviation
Outside diameter da
Nominal dimension Permissible deviation
4 +/-0.1




5
6
7
8
9
10
12 【0.08
14
15
16
18
20
22
25
26
28
30
32 【0.15
35
38
40
42 0.20
45
48
50
55 【0.25
60
65 【0.30
70
75 0.35
80
85 0.40
90
95 【0.45
100
110 0.50
120
130 0.70
140
150 0.80
160
170 0.90
180
190 1.0
200
220 1.20
240
260 1.30


1) For outside diameters of nominal dimensions 4 and 5 mm, the permissible deviation from the nominal dimension s of the wall thickness is 20 % For outside diameters of nominal dimensions 6 to 8 mm, the permissible deviation from the nominal dimension s of the wall thickness is 15%
.

  s/D
=1/60
s/D
=1/40
s/D
=1/20

Standard
No
Steel Grade Standard Name Dimension
Range
EN 10208 L210GA,L235GA,L245GA,L290GA,
L360GA,L245NB, L290NB,L360NB,
L415NB, L360QB, LI15QB,L450QB,
L485QB,L555QB
Steel Pipes for Pipelines for
Combustible Fluids
33.7-1626mm
EN 10210 S235JRH,S275JOH,S275J2H,S355JOH,
S355J2H,S355K2H,S275NH,S275NLH,
S355NH,S355NLH,S420NH,S420NLH,
S46INH,S460NLH
Hot Finished Structural
Hollow Sections of Non-alloy
and Fine Grain Steels
21.3-1219mm
EN 10216-1 P195TRI,P195TR2,P235TR1,
P235TR2, P265TR I, P265TR2
Seamless Steel Tubes for
Pressure Purposes-1-
Non-alloy Steel Tubes with
Specified Room Temperature
Properties
10.2-711mm
EN 10216-2 P195GH, P235GH, P265GH,
20MnNb6,16Mo3, 8MoB5-4,
14MoV6.3, 10CrMo5.5,13CrMo4-5,
10CrMo9-10, 11CrMo9.10,
25CrMo4,20CrMoV13-5-5,
15 NiCuMoNB-6-4,X11CrMo5+1,
X11CrMo5+NTI,X11CrMo5+NT2,
X11CrMo9.1+1, X11CrMo9.1+NT,
X10CrMoVNb9-l, X20CrNiV11-1
Seamless Steel Tubes for
Pressure Purposes-2:
Non-alloy and Alloy Steel
Tubes with Specified Elevated
Temperature Properties
10.2-711mm
EN 10216-3 P275NL I,P275NL2, P355N,P355NH,
P355NL1,P355NL2,P460N,P460NH,
P460NL1,P460NL2,P620Q,P620QH,P620QL,
P690Q,P690QH,P690OL1,P690QL2
Seamless Steel Tubes for
Pressure Purposes-3:
Alloy Fine Grant Steel Tubes
10.2-711mm
EN10216-4 P215NL,P255QL,P265NL,
26CrMo4.2,11MnNi5-3,13MnNi6-3,
12Nil4,Xl2Ni5,X10Ni9
Seamless Steel Tubes far
Pressure Purposes-4:
Non-alloy aid Alloy Steel
Tubes with Specified Low
Temperature Properties
10.2-711mm
EN 10224 L235, L275, L355 Non-alloy Steel Tubes and
Fittings for the Conveyance of
Water and Other Aqueous
Liquids
26.9-2743mm
EN 10297-1 E235,E275,E315,E355,E470,
E275K2,E355K2,E420J2,E460K2,
E590K2,F730K2 C22E,C35E,C45E,C60E,
38Mn6,41Cr4,25CrMo4,30CrMo4,
34CrMo4,42CrMo4,36CrNiMo4,
30CrNiMo8,4lNiCrMo7-3-2
Seamless Circular Steel Tubes
for Mechanical mid General
Engineering Purposes-1:
Non-alloy and Alloy
Steel Tubes
26.9-610mm
EN 10305-1 E215,E235,E355 Steel Tubes For Precision
Applications-1:
Seamless Cold Drawn Tubes
4-260mm
EN 10305-4 E215,E235,E355 Steel Tubes for precision
Applications-4:
Seamless Cold Drawn Tubes
for Hydraulic mid Pneumatic
Power Systems
4-80mm

HEAT-TREATABLE STEELS
Seamless steel tubes acc. to DIN EN 10083-3 and DIN 17204










DIN EN 10083-3: Heat-treatable steels (Quenched & tempered steels)
Steel grades: e.g. 25CrMo4, 34CrMo4, 42CrMo4
DIN 2448/17204: Seamless circular tubes made from heat-treatable steels
(DIN 2448 [replaced]): Plain end seamless steel tubes: Dimensions and conventional masses per unit length
Steel grades: e.g. 25 CrMo 4, 34 CrMo 4, 42 CrMo 4
Fields of application:
General mechanical engineering and tool-building, vehicle construction, pressure vessel and pipeline construction

TUBES FOR STRUCTURAL STEEL CONSTRUCTIONS MADE FROM FINE-GRAIN STEELS
Seamless steel tubes acc. to DIN EN 10210 and DIN 17124

DIN EN 10210-1: Hot-finished structural hollow sections of non-alloy and fine-grain structural steels
Steel grades: e.g. S275NH, S355NH, S355NLH, S460NH, S460NLH
DIN EN 10210-2: Hot-finished structural hollow sections of non-alloy and fine-grain structural steels - Tolerances, dimensions and sectional properties
DIN 2448/17124 (replaced): Seamless circular tubes of fine-grain steels for engineering purposes
(DIN 2448 [replaced]): Plain end seamless steel tubes: Dimensions and conventional masses per unit length
Steel grades: e.g. StE 285, StE 355, TStE 355, StE 460, TStE 460
Fields of application:
Steel construction ( e.g. structural and civil engineering ), bridge and crane construction

PIPELINES FOR GAS AND COMBUSTIBLE FLUIDS
Seamless steel tubes acc. to DIN EN 10208-2 and DIN 17172


DIN EN 10216-2: Steel pipes for pipelines for combustible fluids Tubes from requirement class B
Steel grades: e.g. L290NB, L360NB, L415NB, L415QB
DIN 2448/17171 (replaced): Steel pipes for pipelines for the transport of combustible fluids and gases
(DIN 2448 [replaced]): Plain end seamless steel tubes: Dimensions and conventional masses per unit length
Steel grades: e.g. StE 290.7, StE 360.7, StE 415.7
Fields of application:
Long-distance pipelines (e.g. oil and oil products) for compressed and liquid gases

SEAMLESS TUBES FOR PRESSURE PURPOSES AT ROOM TEMPERATURE
Seamless steel tubes acc. to DIN EN 10216-3 and DIN 17179

DIN EN 10216-3: Seamless steel tubes for pressure purposes of alloy fine- grain steels with specified properties at room temperature
Steel grades: e.g. P355N, P355NH, P355NL1, P355NL2
DIN 2448/17179 (replaced): Seamless circular tubes of fine-grain steels for special requirements
(DIN 2448 [replaced]): Plain end seamless steel tubes: Dimensions and conventional masses per unit length
Steel grades: e.g. StE 355, WStE 355, TStE 355, EStE 355
Fields of application:
Pressure vessel construction, apparatus engineering, pipelines, mechanical engineering and tool-building.

SEAMLESS TUBES FOR PRESSURE PURPOSES AT LOW TEMPERATURES
Seamless steel tubes acc. to DIN EN 10216-4 and DIN 17173

DIN EN 10216-4: Seamless steel tubes for pressure purposes of non-alloy and alloy steels with specified low-temperature properties.
DIN 2448/17173 (replaced): Seamless circular tubes of cold-resistant steels
(DIN 2448 [replaced]): Plain end seamless steel tubes: Dimensions and conventional masses per unit length
Fields of application:
Apparatus engineering, vessel construction, pipelines, mechanical engineering and tool-building.

DIN 2391 Seamless Precision Steel Tubes
DIN 2393 St28 St34.2 St37.2 St44.2 St52.3 Welded Precision Steel Tubes
EN 10305-2 E195 E235 E355 Welded Cold Drawn Precision Steel Tube
EN 10305-1 E215 E235 E355 Seamless Precision Steel Tube Tubing Tubes
Features of Pipe Series of high-precision bright Steel Tube
Comparison Conversion Chart of Stainless Steel
Material Grade Comparison Conversion Chart of Carbon Alloy Steel
Carbon Steel Pipe Standard ASTM BS DIN Sweden
Stainless Steel Comparison Table
Stainless Steel and Nickel Alloy Conversion Chart
Nickel Alloy Grades Comparison Chart
Pipes Tubes Plates Bars Square Tubes Weight Calculation Calculator
Comparison Chart of Alloy Steel Casting Degrees
Structural Steel Comparison Chart
Normal Material Comparison Chart for Gray Iron
Conversion Calculator Calculation-Pressure|Weight|Temperature|Volume|Length
Pipe Working Pressure Calculator
Metals Weight Calculatorn
Normal Material Comparison Table for Grey Iron
Normal Material Comparison Table for Ductile Iron
Comparison Table of Alloy Steel Casting Degrees
Use of stainless steel under high temperature condition refer table
Corrosion Resistant Stainless Steel Tube
Corrosion Resistance of Stainless Steel Tubes
High Temperature Stainless Steel Tubes
High Temperature Stainless Steel Tubes
High Temperature Property Stainless Steel
Heat resistant Stainless Steel Tubes
Welded Stainless Steel Pipe
U-bend Stainless Steel Tubes
Heat Exchanger Tubes
Duplex Stainless Steel Tubes
Boiler Tubes, Condenser Tubes
Corrugated Seamless Stainless Steel Pipe Tube
Non Acid-resisting Stainless Steel Tube
Bright Annealing Stainless Steel Tubes
High Temperature-Tubes and Pipes Standards
Heat Resistant Stainless Steels and Corrosion Resistant Stainless Steels-Valve Steels,Iron Baes Super alloys

TubingChina.com All Rights Reserved

Directory | Standard | Heat | Heat Exchanger | Temperature | Pressure | Corrosion | Hardness | Surface | Properties | Select Stainless Steel | Contact US

Useful Tools:

Stainless Steel Weight Calculator
Metals Weight Calculator
Nickel Alloy Weight Calculator
Copper Brass Alloy Weight Calculator
Copper Brass Alloy Sheet Plate Weight Calculator
Sheet Plate Weight Calculator
Hardness Conversion Calculator
Hardness Conversion Chart
Rockwell Brinell Vickers Shore Hardness Conversion Chart
Conversion Calculator
Length Weight Temperature Volume Pressure Calculater
Pipe Working Pressure Calculator
Pressure Conversion Converter
Round Bar Size Calculator
Gauge Sizes
Sheet Metal Gauge
Pipe Schedule
Nominal Pipe Size
ANSI Pipe Chart
Inch to mm Chart
Stainless Steel Pipe Sizes
Stainless Steel Tubing Sizes Chart
Stainless Steel L H Grade
Stainless Steel Density
Conversion of Stainless Steel
Nickel Alloy Grades Comparison Material Grade Chart Carbon Steel
Structural Steel Comparison Chart



Main Products:

BA Tube | AP Tube
Condenser Tubes Tubing
Stainless Steel Reheater Tube Superheater Tubes
Stainless Steel U bend Tube
Nickel Alloy U bend Tubes
Copper Alloy U Bend Tubes
Heat Exchanger Tube
Super Duplex Pipe
Nickel Alloy Tube
Brass Alloy Tubing
Copper Nickel Alloys Tubes
Stainless Steel Hollow Tube
Stainless Steel Oval Tubing
Stainless Steel Square Tubing
Stainless Steel Rectangular Tubing
Stainless Steel Capillary Tube
Duplex Stainless Steel Pipe
Seamless Stainless Steel Tubing
Corrugated Stainless Steel Tubing
Stainless Steel Twisted Tube
Polishing Stainless Steel Tubing
Stainless Steel Aircraft Tube
Stainless Steel Hydraulic Tubing
Stainless Steel Instrumentation Tubing
Stainless Steel Angle Iron Bar
Stainless Steel Mechanical Tube
Bright Annealing Stainless Tube
Heat resistant Stainless Steel
Stainless Steel Welded Pipe
Extruded Serrated Finned Tubes Integral Finned Tubes / Extruded Aluminum Finned Tubes
Brass Alloys Copper Nickel Alloy Integral Low Finned Tubes
HFW High Frequency Welded Helical Spiral Serrated Finned Tubes
Corrosion Resistant Stainless Steel
Corrosion Resistance Stainless Steel

Stainless Steel Tubing Pipe

304 Stainless Steel Pipe
304L Stainless Steel Pipe
304H Stainless Steel Pipe
304/304L Stainless Steel Tubing
309S Stainless Steel Pipe
310S Stainless Steel Pipe
316L Stainless Steel Tubing
316Ti Stainless Steel Tube
317L Stainless Steel Pipe
321 321H Stainless Steel
347 347H Stainless Steel
904L N08094 Seamless Tubes
17-4 PH 630 UNS S17400 Stainless Steel
253MA S30815 Stainless Steel Tube
S31254 254 SMO Pipe
S31803 Stainless Steel
2205 Duplex Pipe Tubing
S32101 Stainless Steel
S32304 Stainless Steel
2507 Super Duplex Pipe
S32750 Super Duplex Pipe
S32760 Super Duplex Steel
1.4462 Stainless Steel Pipe
ASTM A213 | ASTM A269
ASTM A312 | ASTM A511
ASTM A789 | ASTM A790
ASTM B161 / ASME SB 161 | ASTM B111
EN 10216-5
ASTM A789 ASME SA 789 S31803 S32205 S32101 S32750 S32760 S32304 S31500 S31260 Seamless Tubes
EN 10216-5 1.4462 1.4362 1.4162 1.4410 1.4501 Seamless Tubes
Nickel Alloy Tubing:

UNS N08020 Alloy 20 Tubing
UNS N02200 Alloy 200 Tube
UNS N02201 Alloy 201 Pipe
UNS N04400 Monel 400 Tubing
N06600 Inconel 600 Tube
N06601 Inconel 601 Tubing
N06625 Inconel 625 Tubes
N08800 Incoloy 800 Tube
N08810 Incoloy 800H Tube
N08811 Incoloy 800HT Tubing
UNS N08825 Incoloy 825 Pipe
ASTM B622 N10276 C276 Tubing
ASTM B622 N06022 Hastelloy C-22 Alloy Tubes
C28000 Brass Seamless Tubes C44300 Brass Seamless Tubes
C68700 Brass Seamless Tubes
C70600 Copper Nickel Tubes
C71500 Copper Nickel Tubes
DIN 2391 Seamless Precision Steel Tubes
EN 10305-1 E215 E235 E355 Seamless Precision Steel Tube Tubing Tubes
DIN 2393 St28 St34.2 St37.2 St44.2 St52.3 Welded Precision Steel Tubes
EN 10305-2 E195 E235 E355 Welded Cold Drawn Precision Steel Tube
