TP309S Stainless Steel Pipe - ASME SA 213 ASTM A213 TP309S 309H Stainless Steel Tube





Require Quotation? Send E-mail to : sales@tubingchina.com

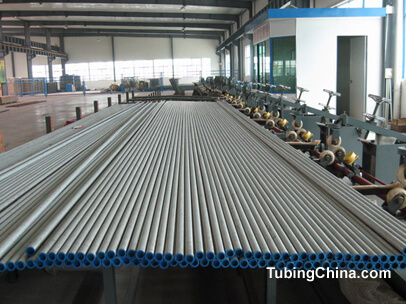

309S Stainless Steel Pipe
Guanyu Tube is specialized manufacturer of ASTM A213 ASME SA 213 TP 309S Stainless Steel Tube, EN 10216-5 1.4833 Stainless Steel Tubing is typically used for elevated temperature applications. Its high chromium and nickel content provides comparable corrosion resistance, superior resistance to oxidation, and the retention of a larger fraction of room temperature strength than the common austenitic Alloy 304.

TP309S Stainless Steel Tubes Properties and Character

309S Stainless Steel Tube is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high temperature strength and creep resistance. The lower nickel content of SX309 improves resistance to sulphur attack at high temperature. It is tough and ductile, and can be readily fabricated and machined.

309S
is the low-carbon version of 309, and is recommended for applications where sensitisation, and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem.

309S stainless steel pipe is used often for higher temperature applications. While its oxidation resistance surpasses that of alloy 310, its resistance to corrosion is equivalent to that of alloy 310. Alloy 309 is highly weldable and cold formable, although it does require stronger forming machines and continuously increasing pressure. Typical machining methods are used for stainless steel grade 309, but it is tougher and does tend to harden more quickly. Like 310 Stainless Steel, 309S Stainless Steel has a high chromium and nickel content which grants excellent resistance to aqueous corrosion.

309S Stainless Steel Tubing is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high temperature strength and creep resistance.  The lower nickel content of SX309 improves resistance to sulphur attack at high temperatures.  It is tough and ductile, and can be readily fabricated and machined. 309S is the low-carbon version of 309, and is recommended for applications where sensitisation, and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem.

309S Stainless Steel Pipe manufacturer according to ASTM A213 and ASTM A312 ASTM A269 specifications.

TP309S Stainless Steel Tubing Applications

309 / 309S is used exclusively for its high temperature oxidation resistance. It is common for SX 309, 310 and 321 to be used in the same piece of equipment in the various temperature regions.

ASME SA213 TP309S EN 10088-1 1.4833 Stainless Steel Tubes Chemical Composition

Grade UNS Designation C Mn P S Si Cr Ni
309H S30908 0.04-0.10 max
2.00
max
0.045
max
0.030
max
1.00
max
22.0 -
24.0
12.0 -
15.0
309S S30909 0.08 max 2.00
max
0.045
max
0.030
max
1.00
max
22.0 -
24.0
12.0 -
15.0
1.4833   0.15 max 2.00
max
0.045
max
0.015
max
1.00
max
22.0 -
24.0
12.0 -
14.0

TP309S Stainless Steel Pipe Mechanical Properties in the Annealed Condition

The properties quoted in this publication are typical of mill production and unless indicated should not be regarded as guaranteed minimum values for specification purposes.

1. 309S Stainless Steel Tubing Mechanical Properties at Room Temperature

  TP309H TP309H TP309S TP309S
  TYPICAL MIN TYPICAL MIN
Tensile Stength       MPa 590 515 570 515
Proof Stress (0.2% Offset)                    MPa 285 205 280 205
Elongation
(Percent in 50 mm)
50 35 48 35
Hardness (Rockwell) - 90HRB Max - 90 HRB Max
Endurance (fatigue) limit                       MPa 260   260

309S Stainless Steel Tubes Creep Data
Stress to develop a creep rate of 1% in the time indicated at the temperature indicated.


Time Temperature °C  550 600 650 700 750 800
10 000 h
100 000 h
Stress MPa
Stress MPa
100
75
80
50
60
30
30
20
25
10
10
5

Creep Rupture Stress


Time Temperature °C 600 700 800 900 1 000
1 000 h
10 000 h
100 000 h
Stress MPa
Stress MPa
Stress MPa
180
150
100
90
50
40
35
30
20
20
10
5
5
2
-

Maximum Recommended Service
Temperature
(Oxidising Conditions)

Continuous 1100°C
Intermittent 980°C

TP309S Stainless Steel Pipe Phyical Properties

309S Stainless Steel Density Specific Gravity: 7.98 (kg/dm³)

309S Stainless Steel Pipe Thermal Processing
1. 309S Stainless Steel Tubing Annealing. Temperature between 1050°C and 1150°C and water quenching. This kind of heat treatment ensures that all carbides are in solution.
2. 309S Stainless Steel Tubing Stress Relieving 250-400°C for 1 hour.
3. 309S Stainless Steel Tubing Hot Working
Initial forging and pressure 1150-1 200°C
Finishing temperature 1000°C

TP309S Stainless Steel Tube Marking and Packing

Stainless Steel Tubing
Visual Testing
Stainless Steel Tube PMI Testing
100% PMI Testing
Stainless Steel Tube Hydraustatic Testing
Hydraustatic Testing

Stainless Steel Tube in Plywood Cases
Stainless Steel Tube Package
Plywood Cases Package

Stainless Steel Tube in Plywood Cases With Iron Frame
Iron Frame Plywood Case Package

309S Stainless Steel Tube Size

Size:1/4″ × 0.035″
Size:3/8″ × 0.035″
Size:1/2″ × 0.035″
Size:5/8″ × 0.035″
Size:3/4″ × 0.035″
Size:1″ × 0.035″
Size:5/16″ × 0.035″
Size:1/4″ × 0.049″
Size:3/8″ × 0.049″
Size:1/2″ × 0.049″
Size:5/8″ × 0.049″
Size:3/4″ × 0.049″
Size:1″ × 0.049″
Size:1/4″ × 0.065″
Size:3/8″ × 0.065″
Size:1/2″ × 0.065″
Size:5/8″ × 0.065″
Size:3/4″ × 0.065″
Size:1″ × 0.065″
Size:1″ × 0.120″
