Martensitic Martensite Stainless Steel

EN 10269 EN10302 EN10088-1 DIN17240 1.4913 X19CrMoNbVN11-1 Stainless Steel








EN 10269 EN10302 EN10088-1 DIN17240 1.4913 X19CrMoNbVN11-1 Stainless Steel is martensitic stainless steel for forming into stainless steel wrought products, known as Wrought Martensitic Creep-Resisting Stainless Steel. The use purpose of 1.4913 stainless steel is similar to 1.4938 stainless steel.

1.4913 Stainless Steel Standard Specification:

EN 10302 Creep resisting steels, nickel and cobalt alloys
EN 10269 Steels and nickel alloys for fasteners with specified elevated and/or low temperature properties
EN 10088-1 Stainless steels. List of stainless steels
DIN 17240 Heat Resisting and Highly Heat Resisting Materials for Bolts and Nuts; Quality Specifications


EN10088-1 1.4913 X19CrMoNbVN11-1 Stainless Steel Physical Properties

Grade Density g/cm³ Elastic Modulus at
Gpa		 Mean Coefficient of Thermal
Expansion between 20°C and 		Thermal Conductivity at 20°C (W/m.K) Specific Thermal Capacity at 20°C (J/kg.K) Electrical Resistivity at 20°C
(Ω.m²/m)
20°C 100°C 200°C 100°C 200°C 300°C 400°C 500°C 600°C
1.4913 7.7 216 209 200 10.5 10.9 11.3 11.6 12.0 12.2 24 460 -

EN10269 1.4913 X19CrMoNbVN11-1 Stainless Steel Mechanical Properties
Designation Max dia. mm Minimum proof strength Rp0.2 N/mm2 at a temperature of (°C)
Steel name Steel No. 50 100 150 200 250 300 350 400 450 500 550 600 650
Steel for quenching and tempering
X19CrMoNbVN11-1 1.4913 160 726 701 676 651 643 627 610 577 544 495 412 305 -

Yield Strength
Rp0.2 (MPa)		 Tensile Strength
Rm (MPa)		 Impact
KV/Ku ( J )		 Elongation
A  (%)		 Reduction in
cross section on fracture
Z (%)		 As-Heat-Treated Condition Brinell Hardness (HBW) max
750 900/1050 24 12.0 40 Solution and Aging, Annealing, Ausaging, Q+T,etc 302

EN10269 1.4913 X19CrMoNbVN11-1 Stainless Steel Chemical Composition
Designation Chemical Composition (% by mass - max unless stated)
Steel name Steel number C Si Mn P max S max Al tot B Cr Mo Ni V Other
Steels for quenching and tempering
X19CrMoNbVN11-1 1.4913 0.17
/0.23		 0.50 0.40
/0.90		 0.025 0.015 0.02 0.0015 10.00
/11.50		 0.50
/0.80		 0.20
/0.60		 0.10
/0.30		 Nb
0.25
/0.55:
N
0.05
/0.10

1.4913 Stainless Steel is usually produced by AOD/VIM/VOD and followed by electroslag refining (ESR) if necessary for special purpose.

Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different level according to the buyers' requirements. Bars are usually supplied bright in the solution annealing condition.

Final heat treatment - heat treatment / QT / solution treatment
Steel number Heat Treatment Symbol Quench/Anneal Temperature Cooling Temper Temperature
1.4913 Quenched and Tempered 1100°C /1130 °C air, oil 670°C /720 °C


EN10269 1.4913 X19CrMoNbVN11-1 Stainless Steel Size Availability
Steel Grade Specification Processing Range (mm)
1.4913 Stainless Steel Round Bar and Hollow Bar Φ1 to Φ2000mm
Square and Flat Steel Φ10 to Φ100mm
Plate and Sheet 0.08-800 (Length)×10-1500(Width)×Thickness
Tubing or Pipe OD:Φ4-410, Wall Thickness:1-35 mm, Lenght:10-12000mm
Coil and Strip Steel Thickness:0.1mm Width:1500mm
Forging Rings / Cylindrical / Disks

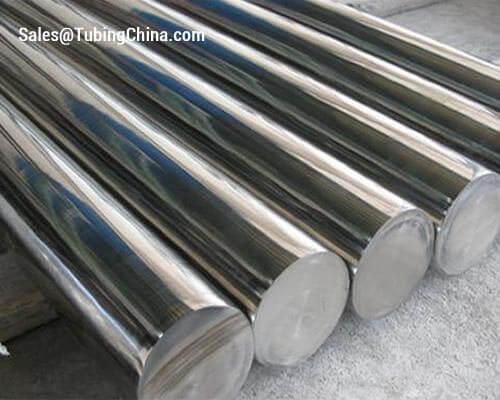

Wrought Stainless Steel

  Stainless Steel Tube/Pipe/Tubing, Nickel Alloy Tubing, Brass Alloy Tubing, Copper Nickel Pipe Material Grades


EN10269 1.4913 X19CrMoNbVN11-1Stainless Steel Tubing Size range:
Size:1/4″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/8″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1/2″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:5/8″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/4″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:5/16″ × 0.035″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1/4″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/8″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1/2″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:5/8″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/4″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1″ × 0.049″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1/4″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/8″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1/2″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:5/8″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:3/4″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1″ × 0.065″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
Size:1″ × 0.120″
EN 10302 EN10269 EN 10088-1 DIN 17240 1.4913 X19CrMoNbVN11-1 Stainless Steel Tubing and Pipes
