Selection of Stainless Steel for Handling Citric Acid C3H4OH (COOH)3
Citric acid is a weak organic acid, found in fruits such as lemons (citrus)
Either the 304 or 316 types can be considered for most storage and handling applications.Citric acid is also be used for cleaning stainless steel and passivating stainless steel.
The low carbon types (304L or 316L) may be needed for temperature above around 60 degC to avoid any risk of intergranular attack in weld heat affected zones.
Corrosion resistance of stainless steel

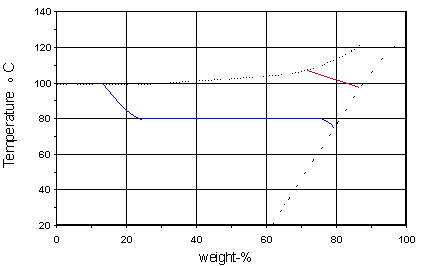

The iso-corrosion diagram 0.1mm/year lines show that either the 304 (blue) or 316 (red) types can be selected for normal storage & handling applications.
(The chain line represents the solubility and the broken line the boiling point)
The 304 types should be adequate for most applications.
At temperatures above 80 degC the 316, or preferably the 316L types, should be considered.
In common with most acid handling applications, chloride contamination may be a cause of pitting corrosion and so in these cases more pitting resistant grades may need to be considered.
Uses for citric acid with stainless steel
Citric acid can be used for cleaning & passivating stainless steel, as an alternative to nitric acid. Solution strengths of 5-10% citric acid are used for passivation treatments.
