Corrugated Stainless Steel Tubing Mill Test Certificate







Corrugated Stainless Steel Pipe is one kind of Heat Exchanger Tube

TEST REPORT FOR CORRUGATED STAINLESS STEEL TUBE & MILL TEST CERTIFICATE ISSUED BY DONGHAO STAINLESS STEEL
PO NO.: PO51423 QUANTITY:   1562 Pcs
LOT NO.: DHH 17-0211A DATE:   March 13th, 2017
GENERAL DESCRIPTION
PROCESS CORRUGATED STAINLESS STEEL TUBE

STANDARD
AS PER MUTUALLY AGREED QAP & DRAWING & ASME Sec II PART A 2015 ED SA213 Gr TP304 (Seamless Cold)

TUBE MATERIAL & DIMENSIONS
OD19.05mm × WT1.5mm × L6000mm × 1562 Pcs

TUBES MANUFACTURER
Zhejiang Guanyu Steel Tube Co., Ltd
DIMENSIONS INSPECTION
SAMPLING 100%

INSPECTION ITEMS

SPECIFICATIONS

TOLERANCE

RESULTS

ACCEPCTABLE OR NOT
OVERALL LENGTH 6000mm  (+3 / 0 ) 6003mm ACCEPTED
LENGTH OF GROOVE 5900mm  / 5896mm ACCEPTED
  BARE END A 50mm ±10mm 53mm ACCEPTED
  BARE END B 50mm ±10mm 51mm ACCEPTED
  TUBE DIAMETER 19.05mm (+0.1/-0.11) 19.06mm ACCEPTED
  TUBE Wall Thickness 1.5mm (+20% , -0) 1.65mm ACCEPTED
  GROOVE DEPTH 0.7mm ±0.3 0.7mm ACCEPTED
  GROOVE ANGLE 75 deg / 77 deg ACCEPTED
  GROOVE PITCH 10mm (+/-1.0) 10mm ACCEPTED
  END CONDITIONS PLAIN  / PLAIN ACCEPTED
VISUAL INSPECTION
INSPECTION ITEMS
 STRAIGHT TUBE SURFACE QUALITY Good

CORRUGATED TUBE SURFACE QUALITY
Good
EDDY CURRENT TEST
ASTM E426
100% Good
Comprehensive Judgement

Upon examination, the products conform to therequirements of the drawings, qualified!

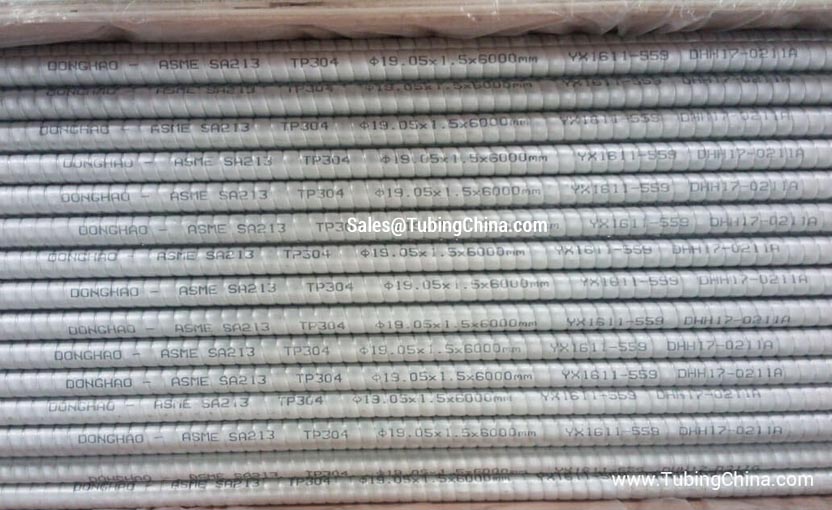

Corrugated Stainless Steel Tube
Outside Diameter: 6 - 76mm
Wall Thickness: 0.50 - 6mm
EN 10216-5; DIN 17456, DIN 17458, DIN 2462, DIN 17455
GB/T14975; T14976; T13296; GB5310;
Corrugated Stainless Steel Tubing Standards (Norm): ASTM A213, A269, A312, A511, A789, A790, A928, A999, A1016, ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM B338, ASTM B407, ASTM B423, ASTM B444,ASTM B619, ASTM B622, ASTM B626, ASTM B668, ASTM B677, ASTM B829
JIS G3459, JIS G3463, JIS G3446, JIS G3447, JIS G3448, JIS G3468
GOST 9940;GOST 9941;
