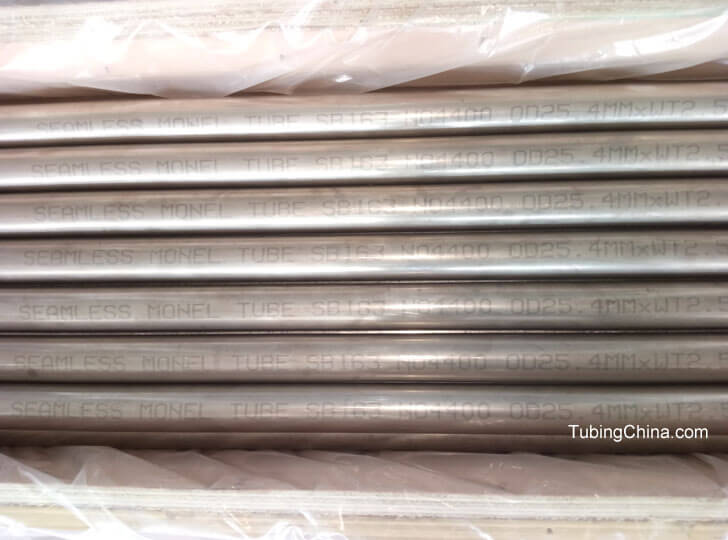

2.4360 DIN 17751 2.4360 Alloy
2.4360 Monel 400 N04400 DIN 17743 17750 17751 17752 17753 2.4360 NiCu30Fe Nickel Alloy is a Nickel-Copper alloy that is resistant to seawater and steam at high temperature as well as to salt and caustic solutions. 2.4360 NiCu30Fe is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress corrosion cracking in most freshwater, and its resistance to variety of corrosive condition led to wide use in marine application and other non-oxidizing chloride solution.
DIN 17743 17750 17751 17752 17753 2.4360 Nickel Alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, 2.4360 NiCu30Fe is rapidly attacked by nitric acid and ammonia systems.
Monel 400 has great mechanical properties at subzero temperature, be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, 2.4360 NiCu30Fe is low in strength in the annealing condition, a variety of temper be used to increase the strength.
DIN 17743 17750 17751 17752 17753 2.4360 Nickel Alloy is a nickel-copper alloy with excellent corrosion resistance in a wide variety of media. The alloy is characterized by good general corrosion resistance, good weldability and moderate to high strength. The alloy has been used in a variety of applications. It has excellent resistance to rapidly flowing brackish water or seawater. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. The alloy is slightly magnetic at room temperature. The alloy is widely used in the chemical, oil and marine industries.
DIN 17743 17750 17751 17752 17753 2.4360 Nickel Alloy is widely used in many fields, especially marine and chemical processing. Typical applications are valves and pumps; pump and propeller shafts; marine fixtures and fasteners; electrical and electronic components; springs; chemical processing equipment; gasoline and fresh water tanks; crude petroleum stills, process vessels and piping; boiler feed water heaters and other heat exchanger; and deaerating heaters.
ASME SB 163 SB 165 ASTM B163 B165 N04400 Monel 400 Chemical Composition, %
| C |
Mn |
S |
Si |
Ni |
Cu |
Fe |
| 0.3 max |
2.0 max |
0.024 max |
0.50 max |
63.0 min |
28.0-34.0 |
2.5 max |
DIN 17743 17750 17751 17752 17753 2.4360 Chemical Composition, %
| C |
Mn |
S |
Si |
Ni+Co |
Cu |
Fe |
Al |
Ti |
| 0.15 max |
2.0 max |
0.02 max |
0.5 max |
63.0 min |
28.0-34.0 |
1.00-2.5 |
0.50 max |
0.3 max |
DIN 17751 2002 2.4360 NiCu30Fe Monel 400 Nickel Alloy Mechanical Properties
| Material Grade |
|
Tensile Strength
Rm
N/mm²(MPa)
min |
Yield Strength
Rp0.2%
N/mm²(MPa)
min |
Yield Strength
Rp 1.0%
N/mm²(MPa)
min |
Elongation
(%) |
Brinell Hardness
HBW 2.5/62.5 |
| max |
Approximately |
| Monel 400 2.4360 |
Annealed |
450 |
180 |
210 |
35 |
140 |
- |
| Monel 400 2.4360 |
Half Hard |
550 |
300 |
- |
25 |
- |
170 |
| Monel 400 2.4360 |
Hard |
700 |
650 |
- |
2 |
- |
210 |
ASME SB 163 SB 165 ASTM B163 B165 N04400 Monel 400 Nickel Copper Alloy Mechanical Properties
2.4360 Monel 400
Standard: DIN 17743
Equal to:Monel 400, 2.4360 NiCu30Fe, Nicorros
Anticorrosion environment: Sea water, hydrofluoric acid, sulfuric acid and non-oxidized diluted acid, alkali and lye. Apply to salt industry, sea water desalinization factory, nuclear fuel processing
| Material No. |
DIN 17743 17750 17751 17752 17753 2.4360 NiCu30Fe |
| EN symbol (short) |
NiCu30Fe |
| AISI/SAE |
— |
| UNS |
N04400 |
| AFNOR |
Nu 30 |
| BS |
BS3071 3072 3073 3074 3075 3076 NA13 |
| alloy |
Alloy 400 |
| Registered work's label |
Monel Alloy 400, Nicorros® |
| Standards |
VdTÜV 263 DIN 17743 17750 17751 17752 17753 |
2.4360 Standard Specifications
| Pipe Seamless |
Pipe Welded |
Tube Seamless |
Tube Welded |
Sheet/Plate |
Bar |
Forging |
Fitting |
Wire |
| B165 |
B725 |
B163 |
|
B127 |
B164 |
B564 |
B366 |
|
| Standards |
Desciption |
| ASTM B127 |
Standard Specification for Nickel-Copper Alloy (UNS N04400) Plate, Sheet, and Strip |
| ASTM B163 |
Standard Specifications for seamless nickel and nickel alloy condensers and heat-exchanger tubes |
| ASTM B164 |
Standard Specification for Nickel-Copper Alloy Rods, Bars,and Wires |
| ASTM B165 |
Standard Specification for Nickel-Copper Alloy (UNS N04400)* Seamless Pipe and Tube |
| ASTM B366 |
Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings |
| ASTM B564 |
Standard Specification for Nickel Alloy Forging |
| ASTM B704 |
Standard Specification for Welded Alloy Tubes |
| ASTM B705 |
Standard Specification for Nickel-Alloy Welded Pipe |
| ASTM B725 |
Standard Specification for Welded Nickel and Nickel Cooper Alloy Pipe |
| DIN 17743 (2002/09) |
Wrought nickel alloys with copper - Chemical Composition |
| DIN 17750 (2002/09) |
ribbons and sheet metal out of nickel with nickel-wrought alloy properties |
| DIN 17751 (2002/09) |
tubes out of nickel with nickel-wrought alloy properties |
| DIN 17752 (2002/09) |
rod made from nickel with nickel-wrought alloy properties |
| DIN 17753 (2002/09) |
wire out of nickel with nickel-wrought alloy properties |
| VdTÜV / Werkstoffblatt 432/1 |
extremely corrosion resistant nickel based alloy, niCr21Mo, material-nr. 2.4858 ribbon, sheet metal |
| VdTÜV / Werkstoffblatt 432/2 |
432/2 extremely corrosion resistant nickel based alloy, NiCr 21 Mo, material-nr. 2.4858 seamless pipe |
| VdTÜV / Werkstoffblatt 432/3 |
extremely corrosion resistant nickel based alloy, NiCr 21 Mo, material-nr. 2.3858 rod steel, forging |
The chemically stable and high-temperature resistant nickel and copper alloy 2.4360 (Monel 400) is used in the chemical industry. Our products range of 2.4360 (Monel 400) are alloy tubes and pipes, fittings and flanges, accessories.
| Special characteristics |
| Temperature range: |
Density g/cm³ |
Hardness HBW |
-10 to 425°C (for pressure vessel)
|
8.8 |
Annealed 140 max
Half Hard 170 max
Hard 210 max |
